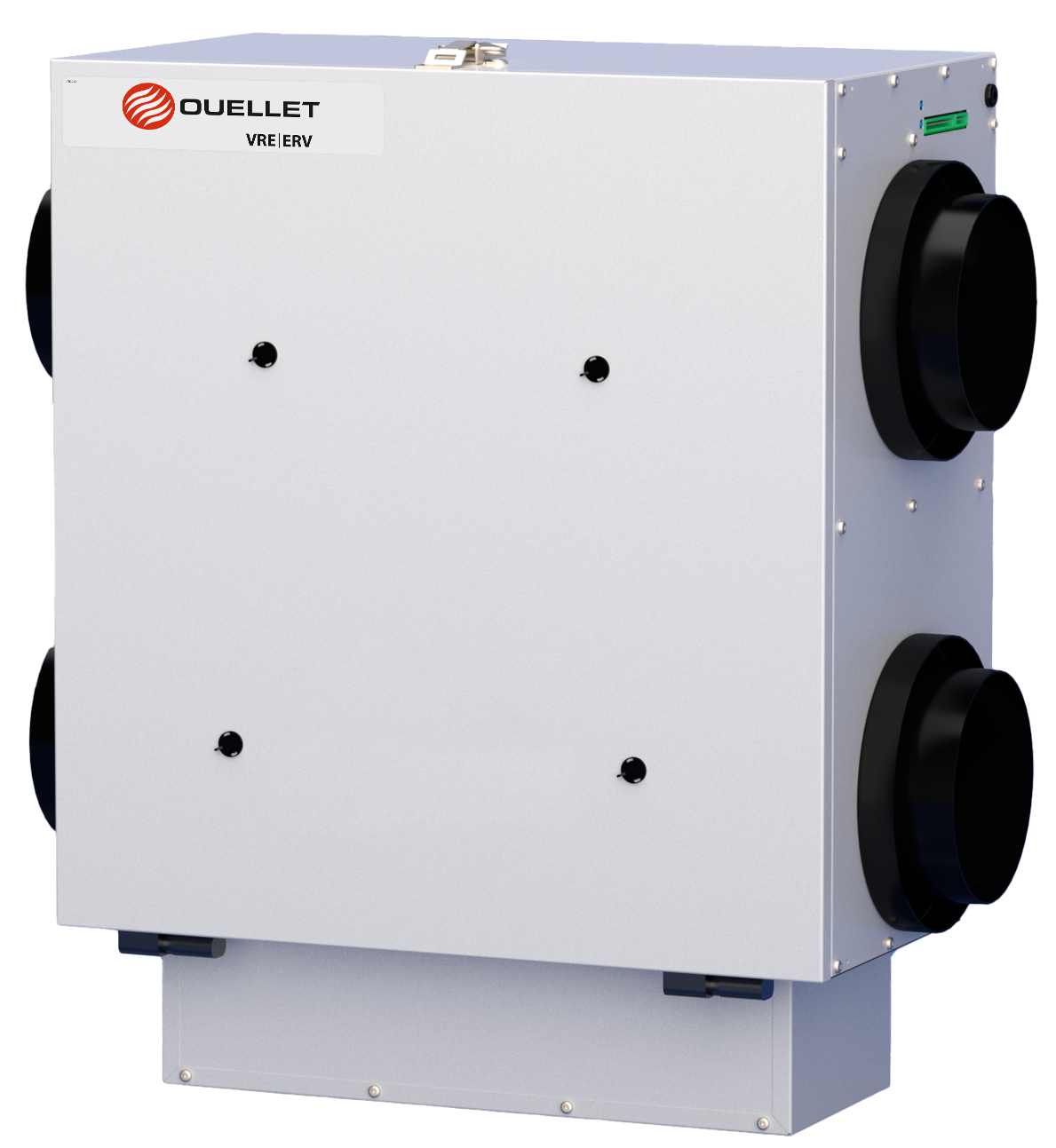

OSAME230R

• Fully adjustable air flow (230 cfm @ 0 in.w.g.).
• 68% sensible recovery effectiveness at 0 °C (30 L/s),
• 58% sensible recovery effectiveness at -25 °C (24 L/s).
• Recirculation defrosts.

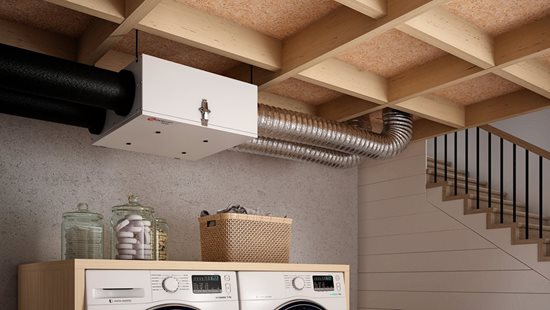

• Ultra-thin: 12 in. (305 mm) and compact for easy installation in tight spaces, while maximizing living space. Can be ceiling-mounted or suspended.
• Lightweight for ease of installation: 43 lb (19.5 kg).
• Hinged door for easy access to components for maintenance purposes.
• High-efficiency cube made from polymer materials, washable by complete immersion in soapy water to restore maximum efficiency.
• Uses 6-inch ports, to exhaust stale air and to supply fresh air from outdoors.
• Side Port model only. Reverse air flow configuration available as a factory installed option (-R).
• No drain required.
• The ideal solution for high-rise appartements and medium-size homes.

Important notice: No wall control is included with the purchase of an air exchanger. It must be purchased separately.
